Innomaker low cost gs camera module CAM-MIPI296Color is a Global Shutter Camera with IMX296 CMOS Sensor support external hardware trigger support cs and c camera lens replace raspberry pi gs camera
- Support up to 60fps at 1456×1088 Pixels, Compatible with rasberry pi GS camera;

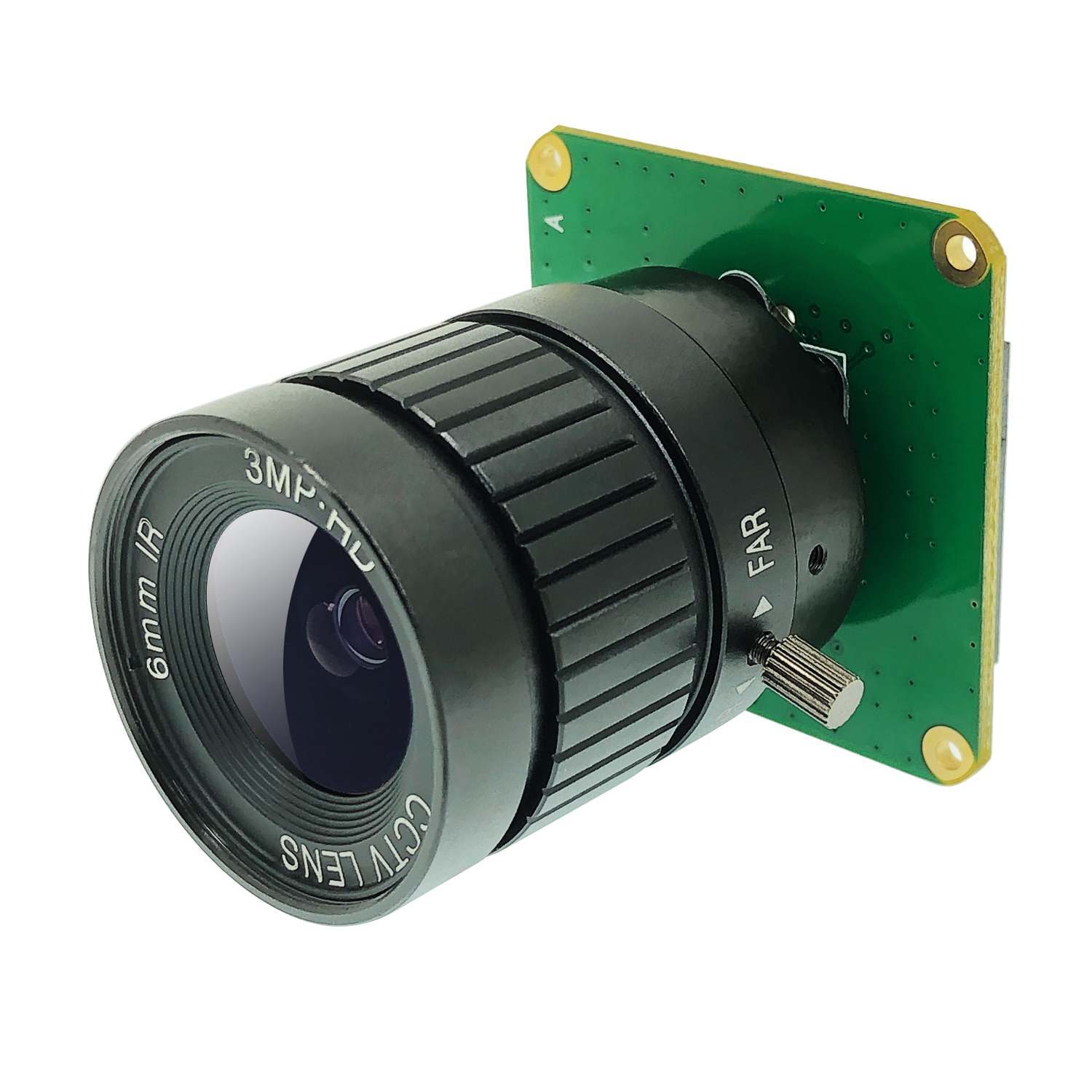

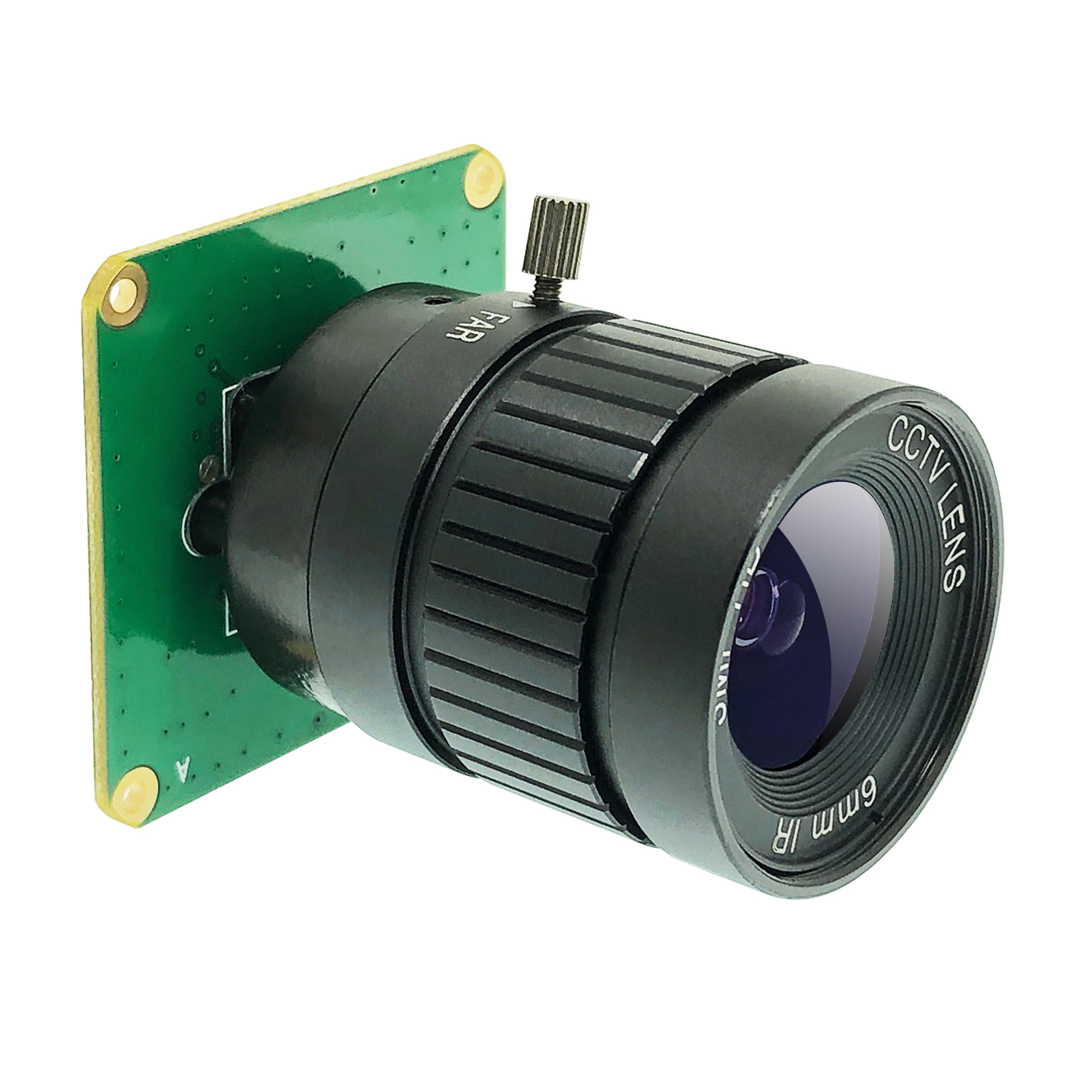

- Support c/cs mount Lens, 20mm distance Lens seat with filter;

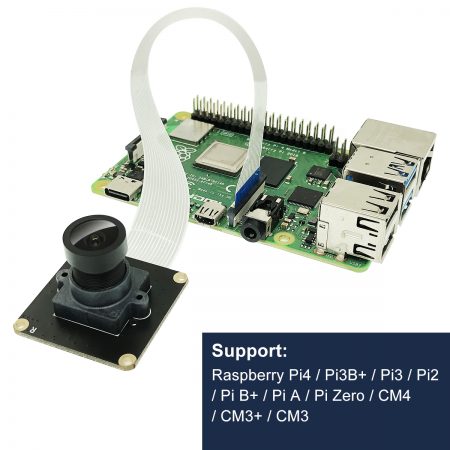

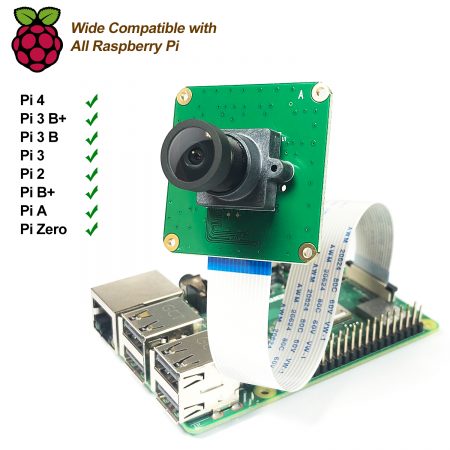

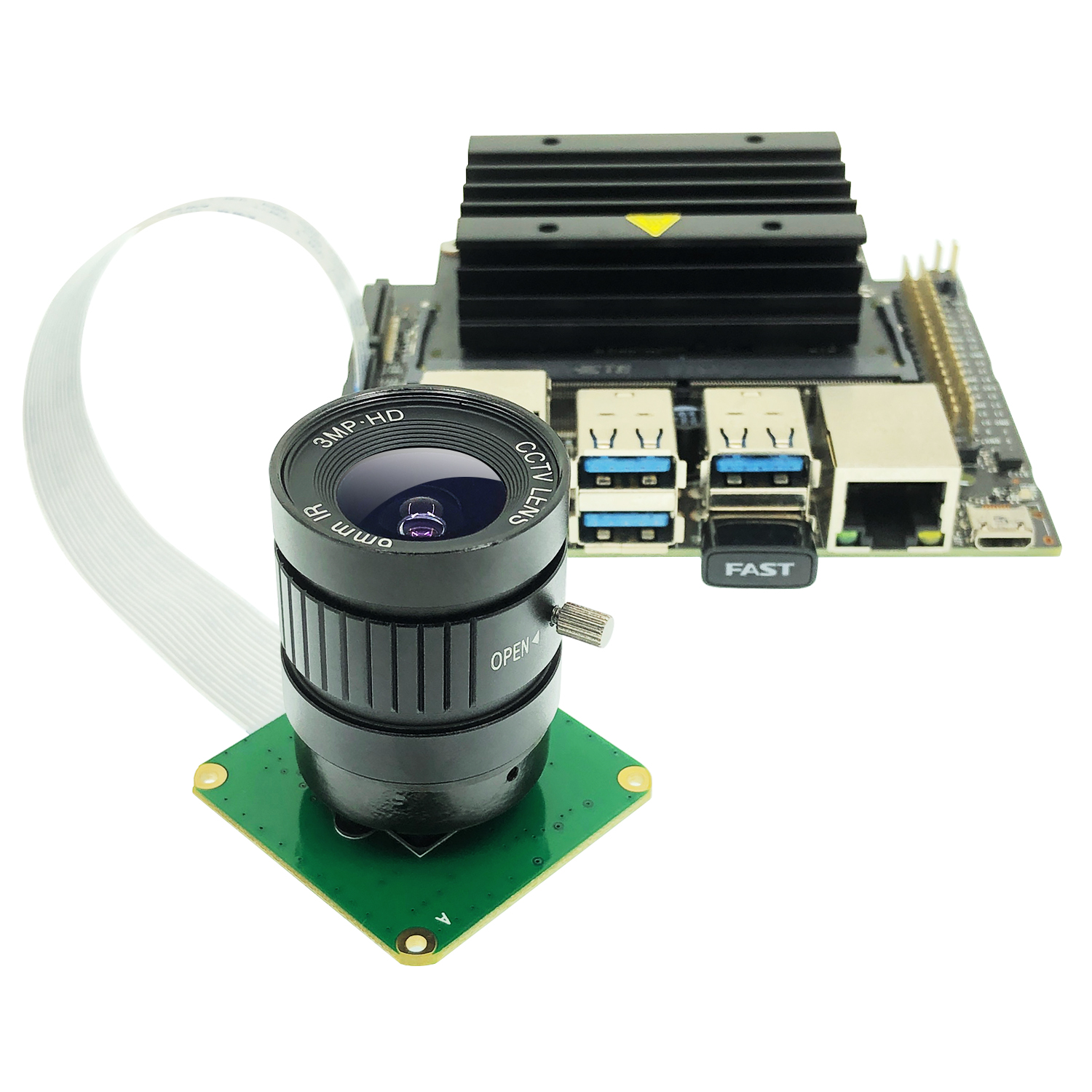

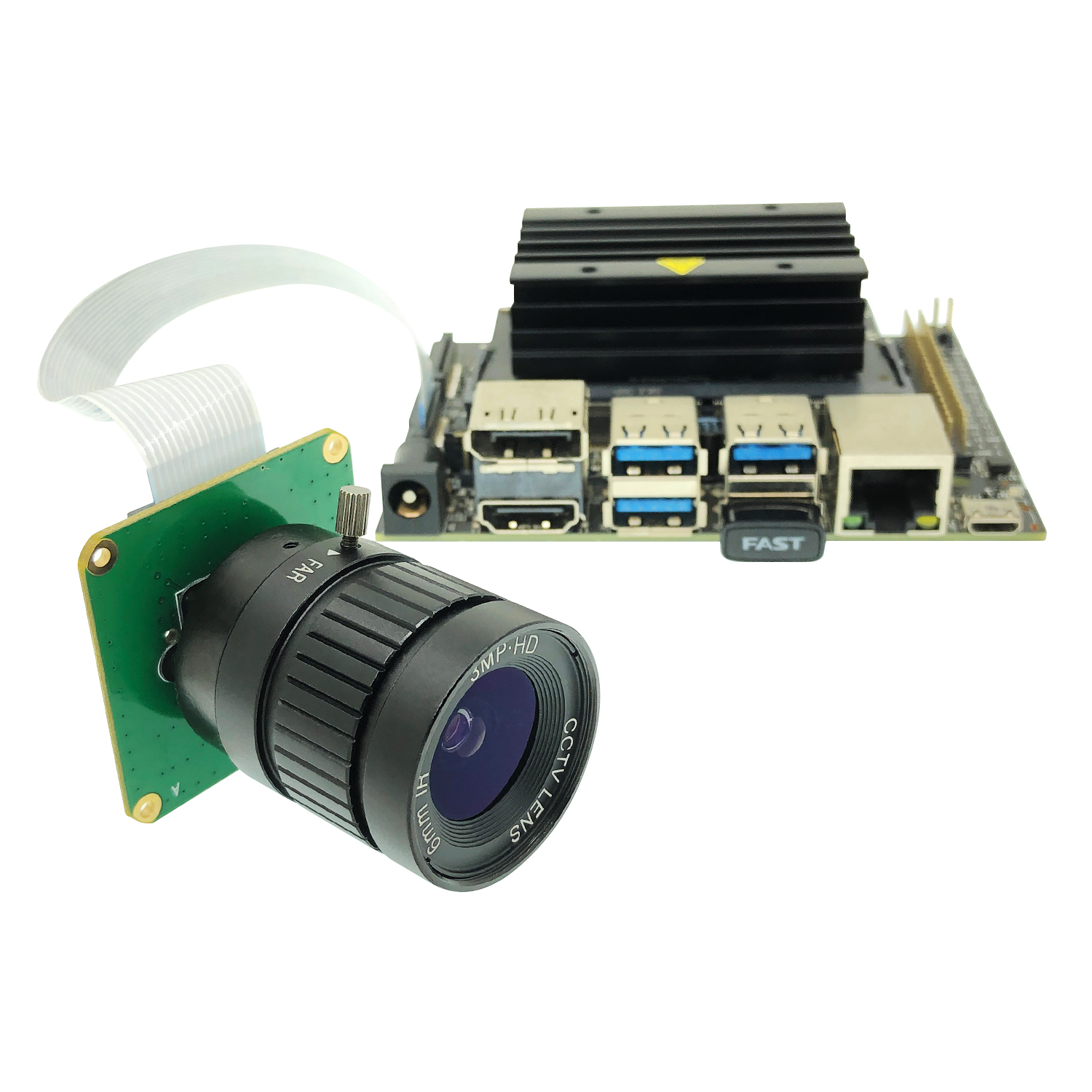

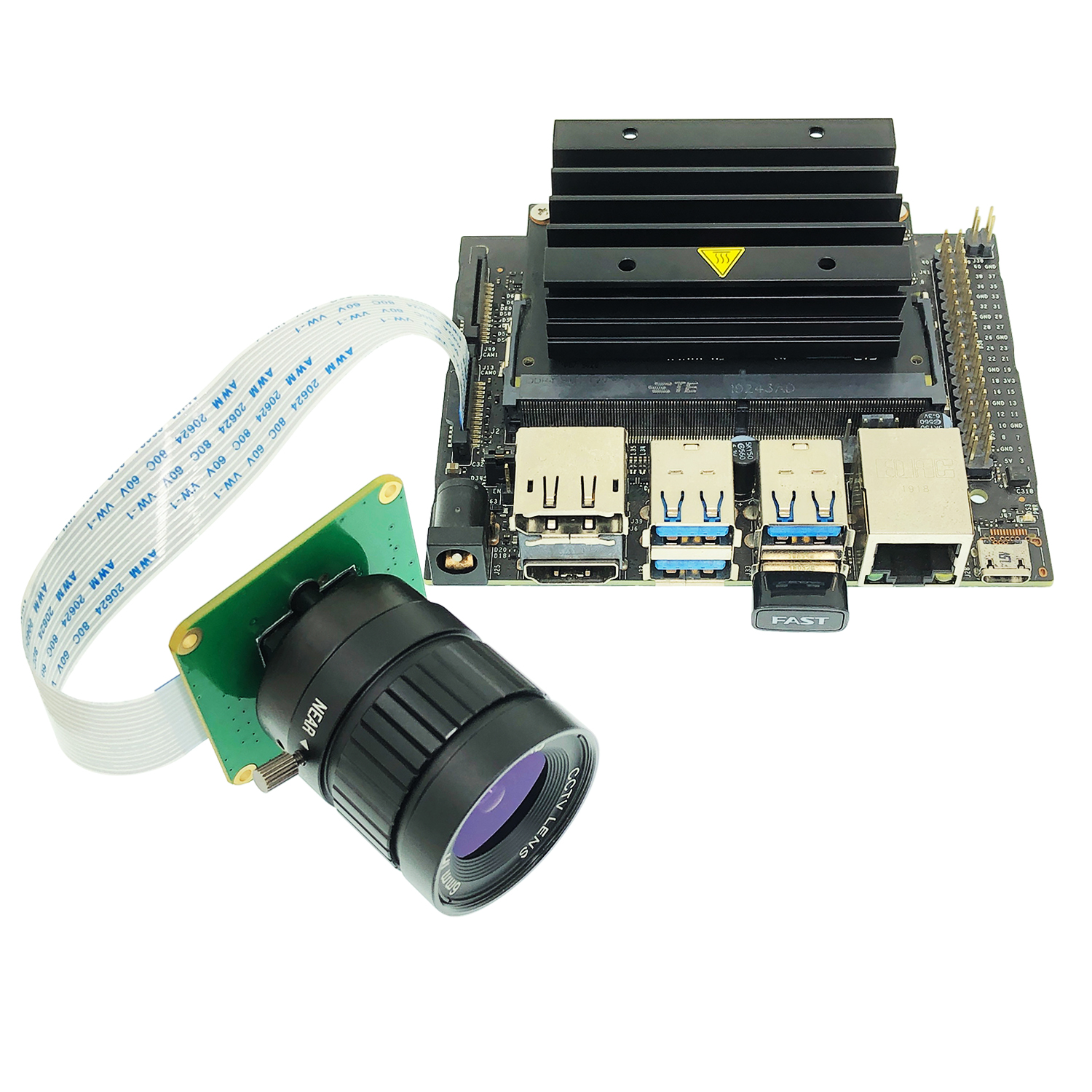

- Compatible with Raspberry PI5/Pi4/PI3B+/PI3/PI2/PI B+/PI A/PI ZERO/CM4/CM3+/CM3/Jetson Nano.
- Output format YUV with Resolution 1456*1088 up to 60fps;(Raspberry PI OS Driver);, Board Size 38mm x 38mm.
- Packing List: cam-imx296color, FPC Cable x2

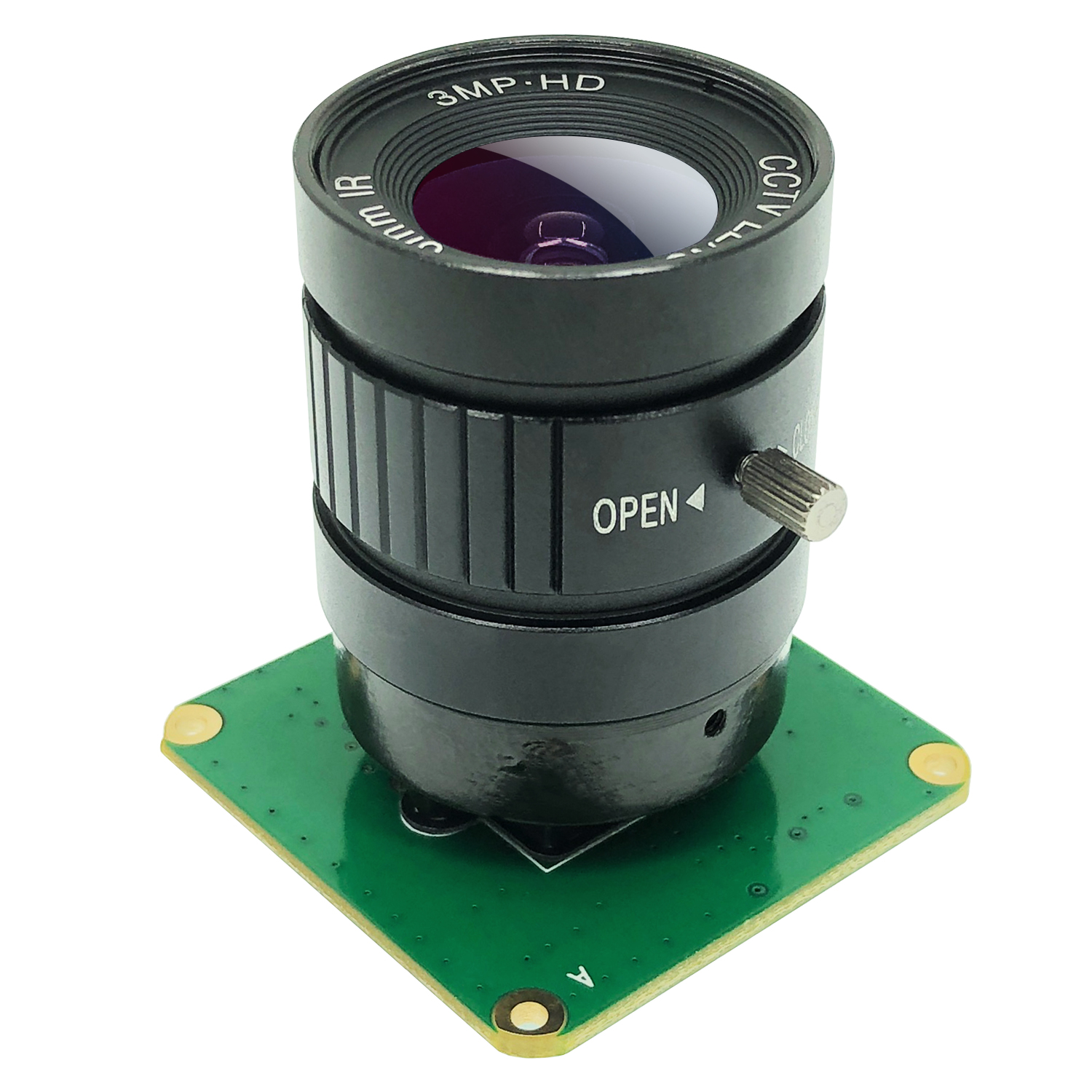

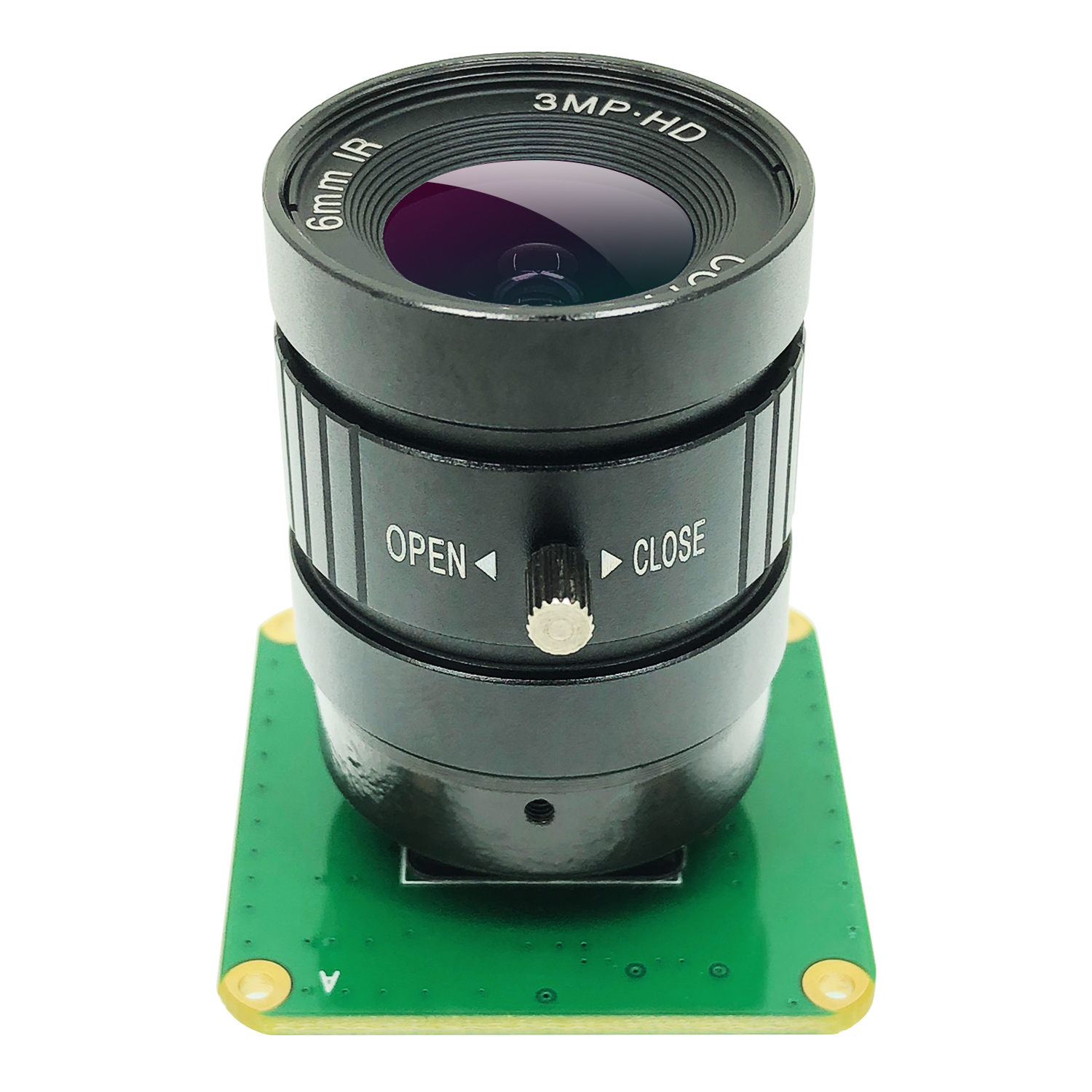

CAM-MIPI296Color is a Global Shutter Camera with IMX296 CMOS Sensor Module
support up to 60fps at 1456×1088 Pixels operate with shorter exposure times down to 30µs, given enough light than a rolling shutter camera, which makes it useful for high-speed photography.
Support Raspberry Pi OS Build In Drivers totally compatible raspberry pi official gs camera module with libcamera tools for all pi boards
2, Specification
| GS Camera | |
| Net price | |
| Size | 38 x 38 |
| Weight | |
| Still resolution | 1.58 Megapixels |
| Video modes | 1456 x 1088p60 |
| Sensor | Sony IMX296 Color version |
| Sensor resolution | 1456 x 1088 pixels |
| Sensor image area | 6.3mm diagonal |
| Pixel size | 3.45 µm x 3.45 µm |
| Optical size | 1/2.9″ |
| Focus | Adjustable |
| Depth of field | N/A |
| Focal length | Depends on lens |
| Horizontal Field of View (FoV) | Depends on lens |
| Vertical Field of View (FoV) | Depends on lens |
| Focal ratio (F-Stop) | Depends on lens |
| Maximum exposure times (seconds) | 15.5 |
| Lens Mount | C/CS |
3,Packing List
- 1xCAM-IMX296Color
- 1x15PIN To 15PIN FPC Cable(1mm)
- 1x15PIN To 22PIN FPC Cable (0.5mm)
4, Quick Start
Step1, Add dtoverlay=imx296 to config.txt
Step2, Set camera_auto_detect=0
Step3, Reboot and preview by libcamera-hello -t 0
5,C/CS LENS
| CW-16MM-LENS-BLUE | CW-16MM-LENS | CW-6MM-LENS | |
| Focal Length: | 16.0mm | 16.0mm | 6.0mm |
| Optical Format: | 1″(Φ16、12.8×9.6） | 1″(Φ16、12.8×9.6） | 1/2″ |
| F/N: | N/A | N/A | 1.2mm |
| D/f’: | F1.4-16 | 1：1.4 | N/A |
| Mount: | C/CS | C/CS Mount | C/CS |
| FOV | 1″:44.6°*33.6° 2/3″:30.0°*23.2° 1/1.8″:24.7°*18.6° 1/2″:21.8°*16.4° |
1″:44.6°*33.6° 2/3″:30.0°*23.2° 1/1.8″:24.7°*18.6° 1/2″:21.8°*16.4° |
63° |
| Back Focal Length： | 17.53mm | 17.53mm | 7.53mm |
| Optical length: | 69.53mm | N/A | N/A |
| Distortion: | 1″ sensor (-0.7%), 1/2″ sensor(-0.5%), 1/3″ sensor(-0.15%) |
0.05% | N/A |
| Iris Type: | Manual | Manual | Manual |
| MTF： | 10Mega Pixel | 10Mega Pixel | 3Mega Pixel |
| M.O.D: | 0.2m | 0.20m~∞ | 0.2m |
| Dimension: | Φ39.0*50.00 | Φ36.0*52.00 mm | Φ30*34 |
| Weight: | 135.3g | 110g | 53g |
| Operation: | Zoom: Manual; Iris Type: Manual; Focus: Manual; | N/A | N/A |
| Structure: | Aluminum alloy+9G | Aluminum alloy+9G | Aluminum alloy+6G |
Option For Mono Version
CAM-IMX296Mono-GS, Raspbery PI GS Camera With Mono Sensor Support External Trigger
