Description
Description

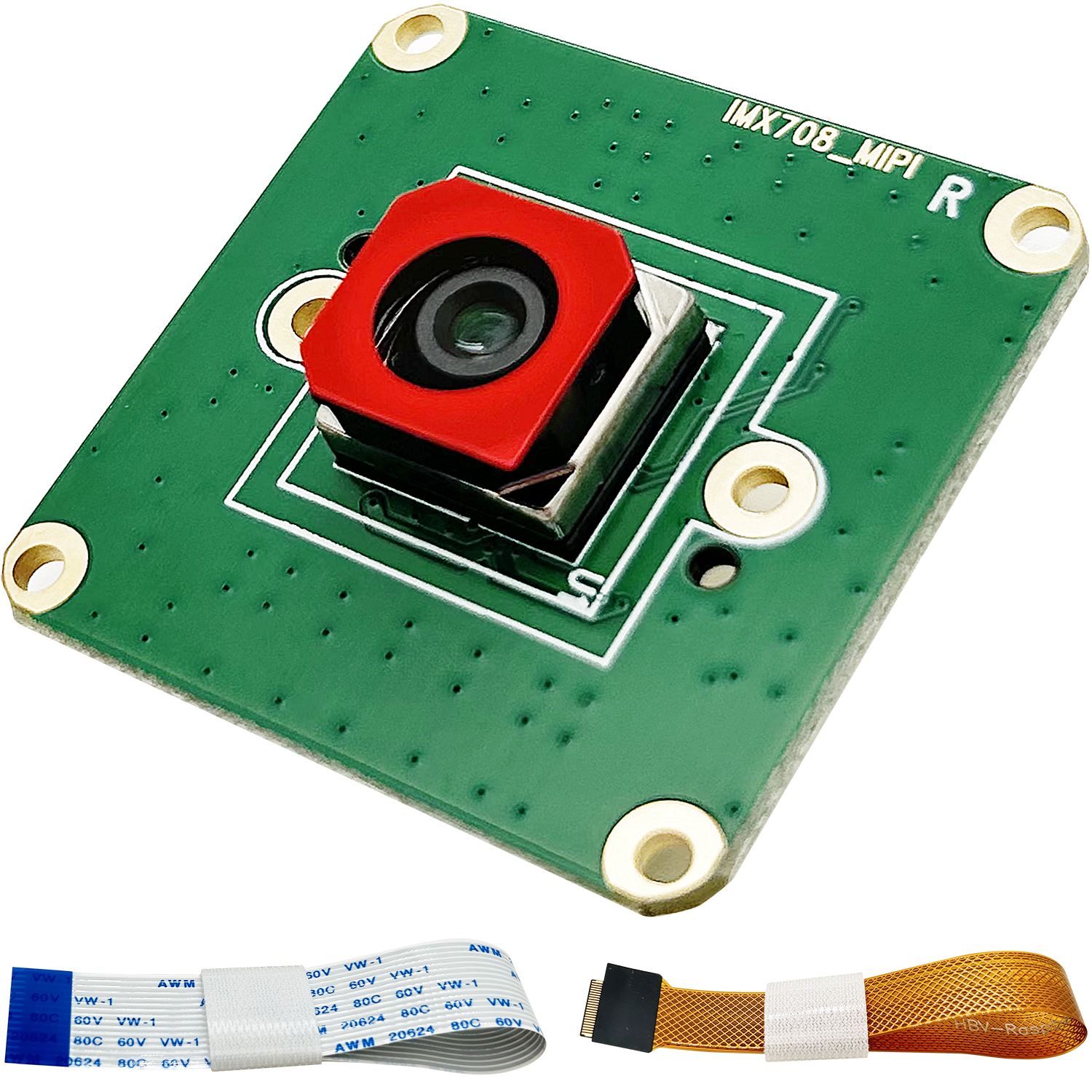

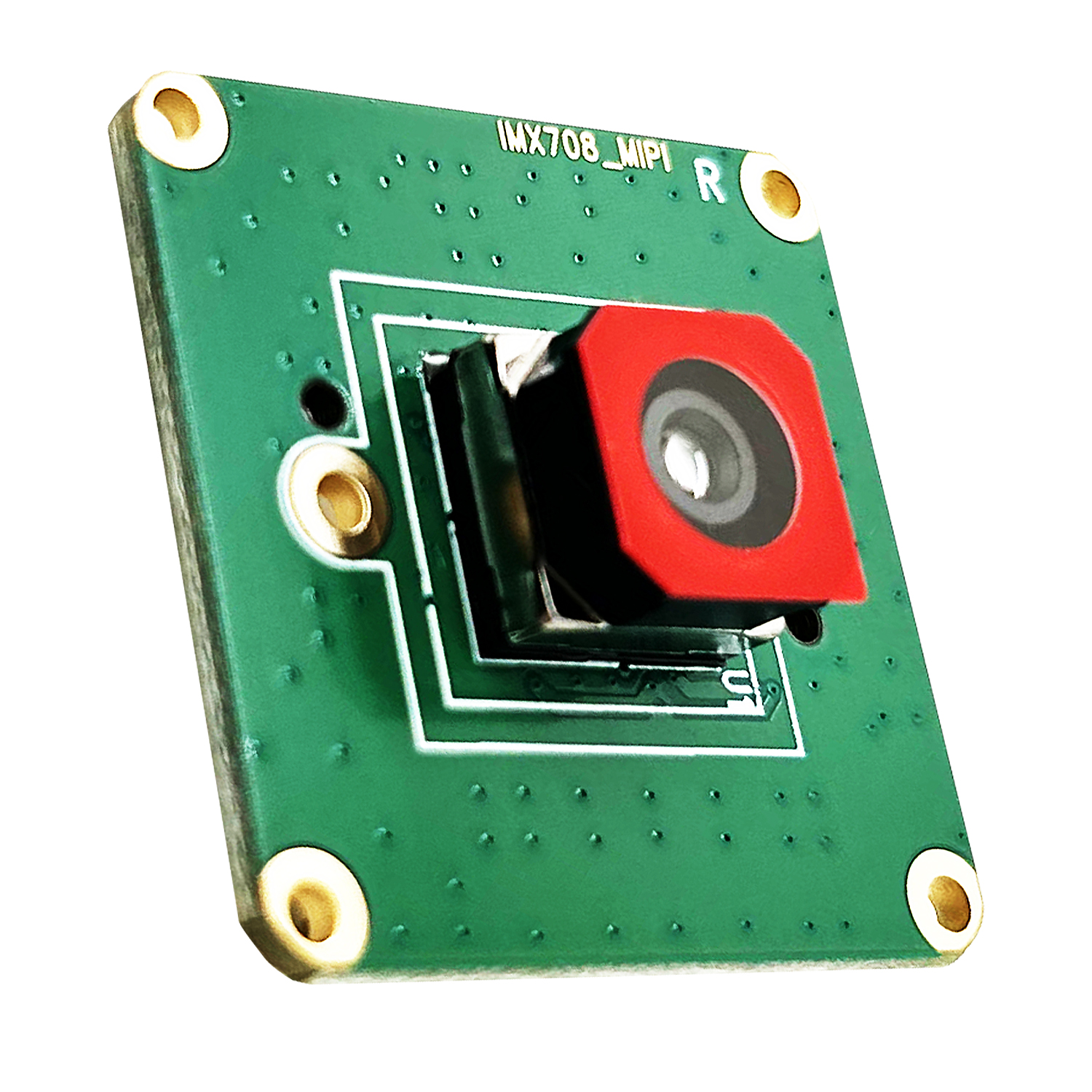

- InnoMaker IMX708 Auto focus Camera Module Compatible with raspberry pi camera V3
Specification
-
Back-illuminated, stacked CMOS 12-megapixel IMX708 image sensor
-
High signal-to-noise ratio (SNR)
-
Built-in 2D Dynamic Defect Pixel Correction (DPC)
-
Phase Detection Autofocus (PDAF) for rapid autofocus
-
QBC Re-mosaic function
-
HDR mode (up to 3 megapixel output)
-
CSI-2 serial data output
- 2-wire serial communication (supports I2C fast mode and fast mode plus)
- 2-wire serial control of focus mechanism
-

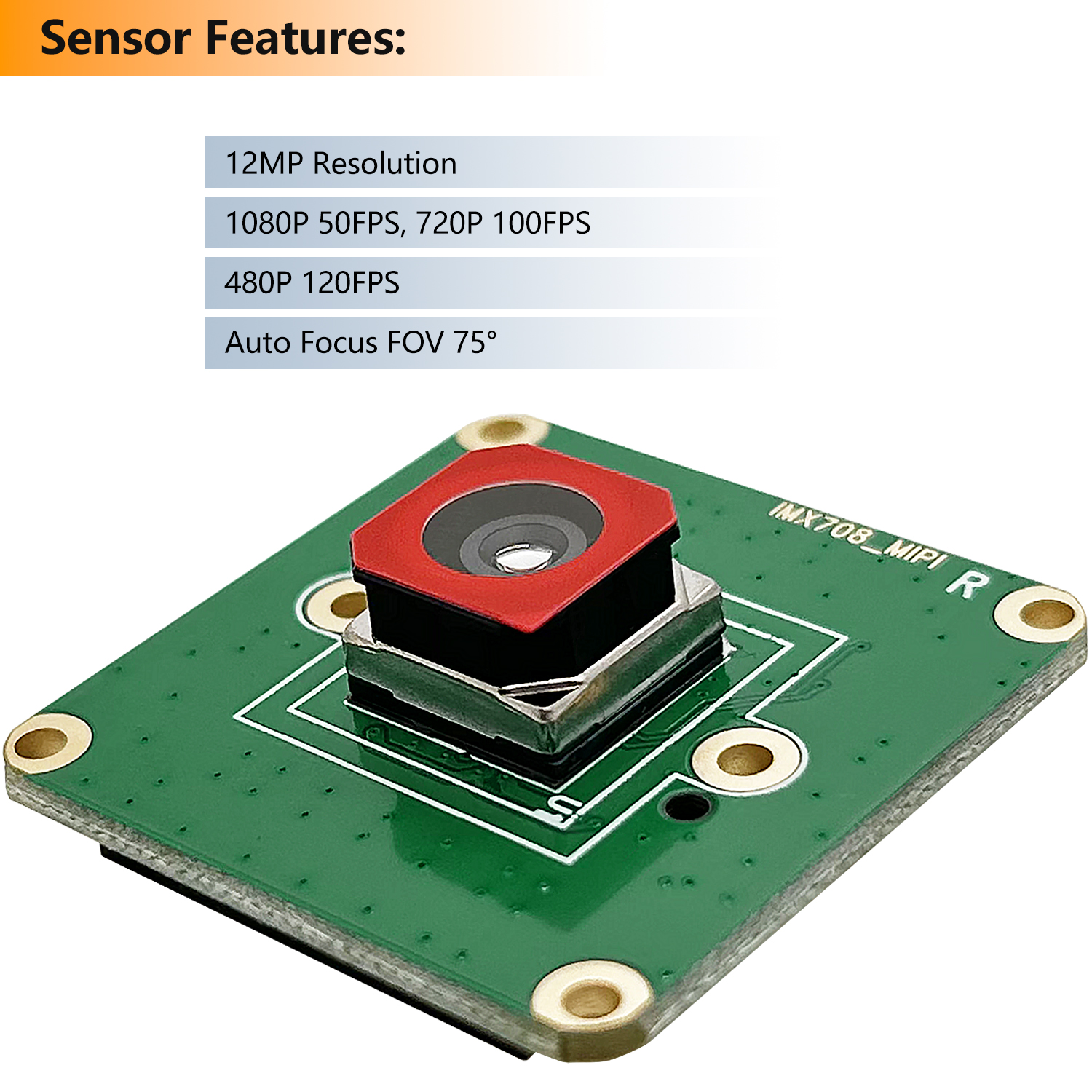

Resolution: 11.9 megapixels
-
Sensor size: 7.4mm sensor diagonal
-
Pixel size: 1.4μm × 1.4μm
-
Horizontal/vertical: 4608 × 2592 pixels
-
Diagonal field of view: 75 degrees
-
Common video modes: 1080p50, 720p100, 480p120
-
Output: RAW10
-
IR cut filter: Integrated in standard variants; not present in NoIR variants
-

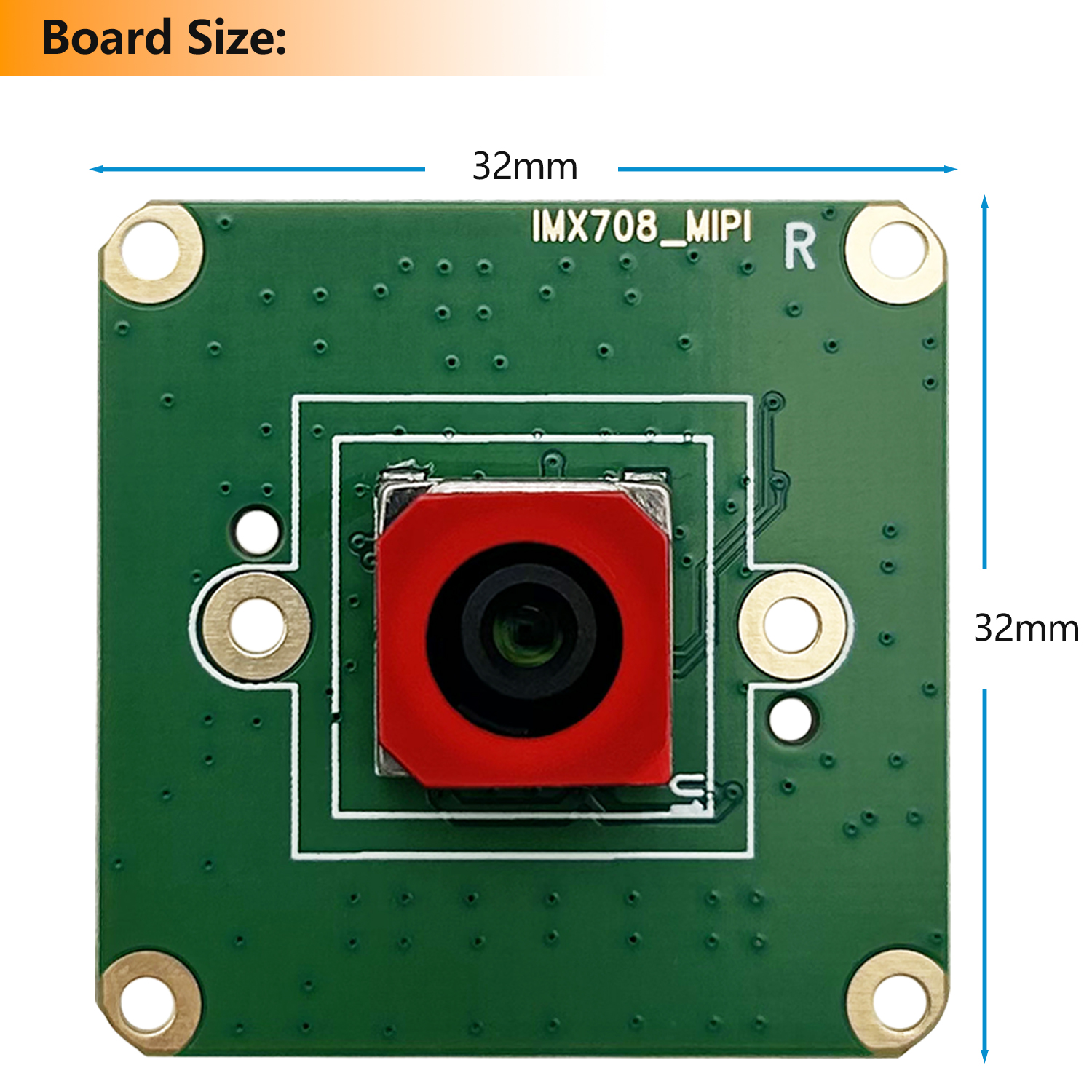

Dimensions: 32 × 32 × 11.5mm (12.4mm height for Wide variants)
-

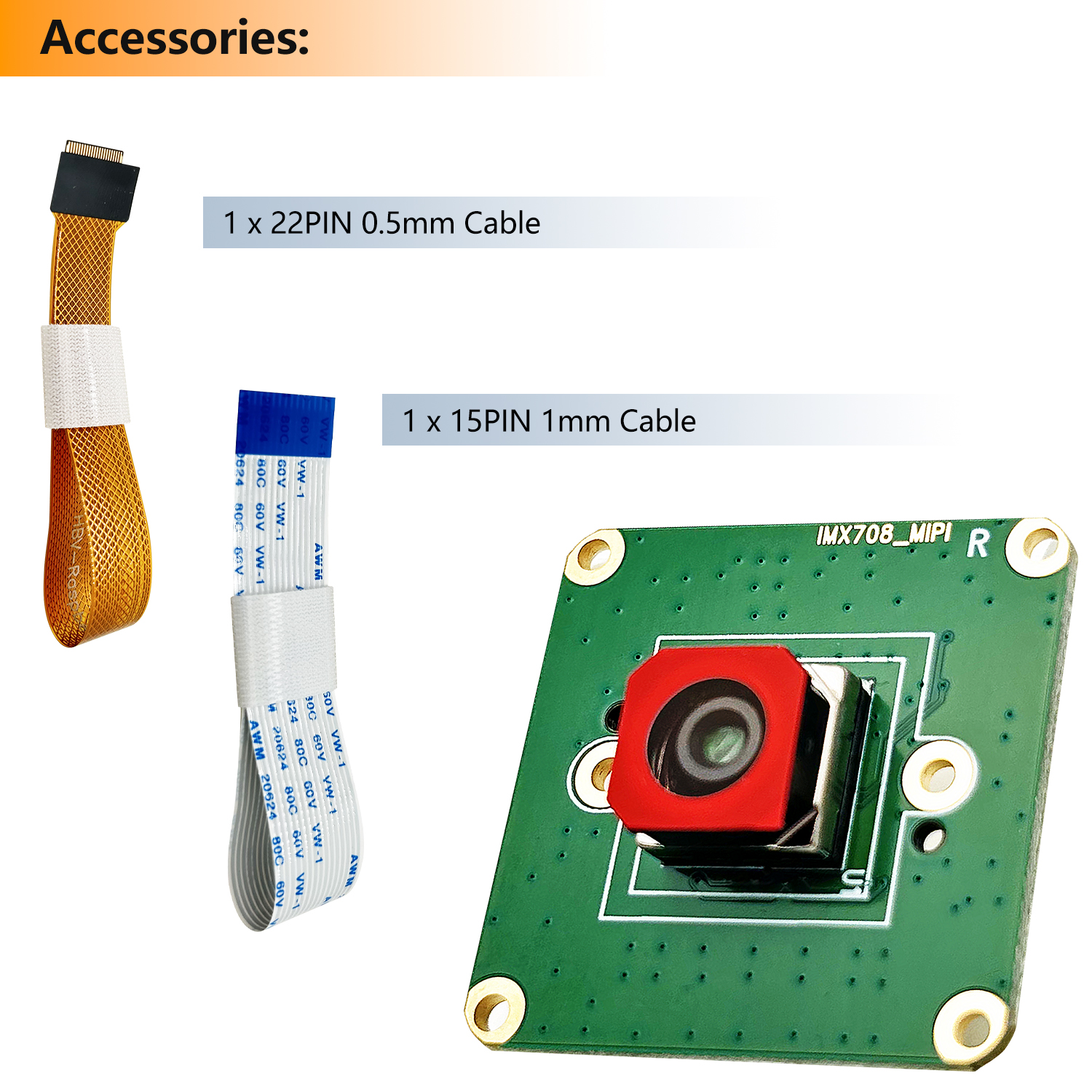

Ribbon cable length: 150mm
-
Cable connector: 15 × 1mm FPC,22 x 0.5mm FPC
Quick Start Guide
- Step1, Add dtoverlay=imx708 to last line of config.txt
- sudo nano /boot/firmware/config.txt
- Step2, Change camera_auto_detect=0
- Step3, reboot and preview
- libcamera-hello -t 0
