Sale!

LA5032

Original price was: $519.00.Current price is: $509.00.

Features:

  • Item Name: LA5032
  • Channel: 32CH
  • Max Sampling Rate:500M@32CH

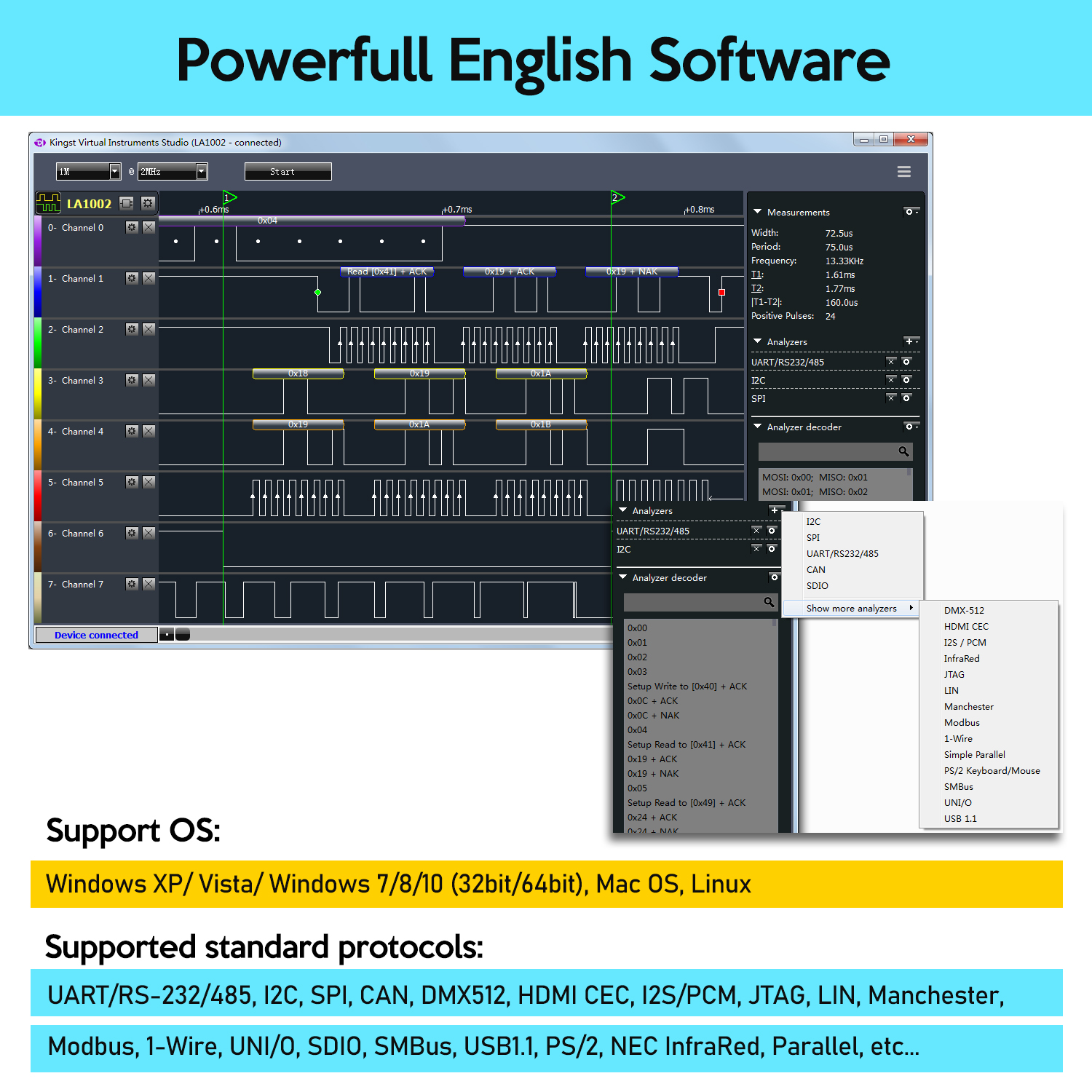

  • Software In English:  Support Windows/Linux/Mac OS

Software Download Link：https://github.com/INNO-MAKER/Logic-Analyzer-KS



Quantity Discount (%) Price
1 - 4 — $509.00
5 - 9 1.96 % $499.00
10 - 49 3.93 % $489.00
50+ 5.89 % $479.00
x
Category: SKU: USB _LA5032

Description

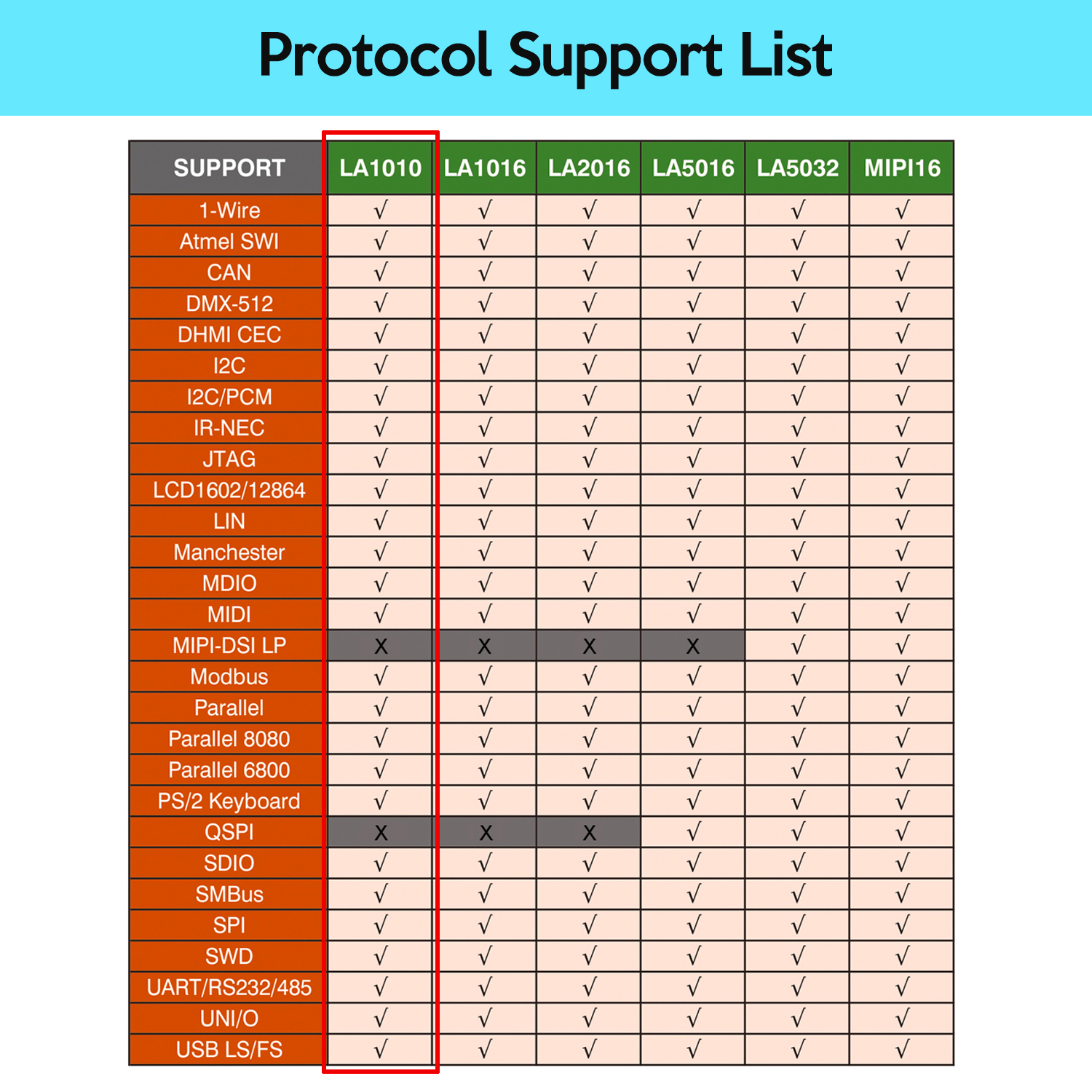

[Product Selection of Logic Analyzer:]

SUPPORT LA1010 LA1016 LA2016 LA5016 LA5032 MIPI16
1-Wire √ √ √ √ √ √
Atmel SWI √ √ √ √ √ √
CAN √ √ √ √ √ √
DMX-512 √ √ √ √ √ √
DHMI CEC √ √ √ √ √ √
I2C √ √ √ √ √ √
I2C/PCM √ √ √ √ √ √
IR-NEC √ √ √ √ √ √
JTAG √ √ √ √ √ √
LCD1602/12864 √ √ √ √ √ √
LIN √ √ √ √ √ √
Manchester √ √ √ √ √ √
MDIO √ √ √ √ √ √
MIDI √ √ √ √ √ √
MIPI-DSI LP × × × × √ √
Modbus √ √ √ √ √ √
Parallel √ √ √ √ √ √
Parallel 8080 √ √ √ √ √ √
Parallel 6800 √ √ √ √ √ √
PS/2 Keyboard √ √ √ √ √ √
QSPI × × × √ √ √
SDIO √ √ √ √ √ √
SMBus √ √ √ √ √ √
SPI √ √ √ √ √ √
SWD √ √ √ √ √ √
UART/RS232/485 √ √ √ √ √ √
UNI/O √ √ √ √ √ √
USB LS/FS √ √ √ √ √ √

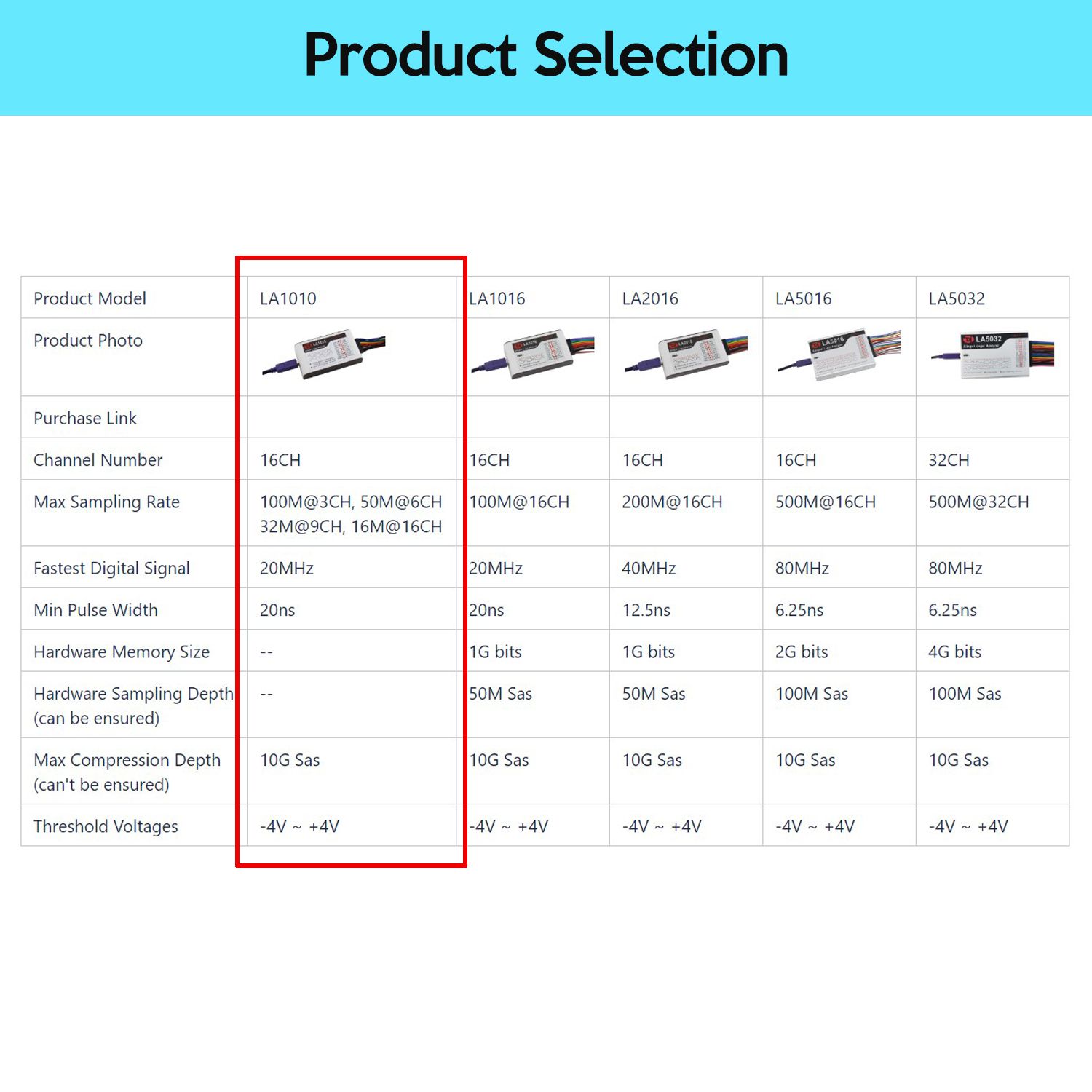

Product Model LA1010 LA1016 LA2016 LA5016 LA5032

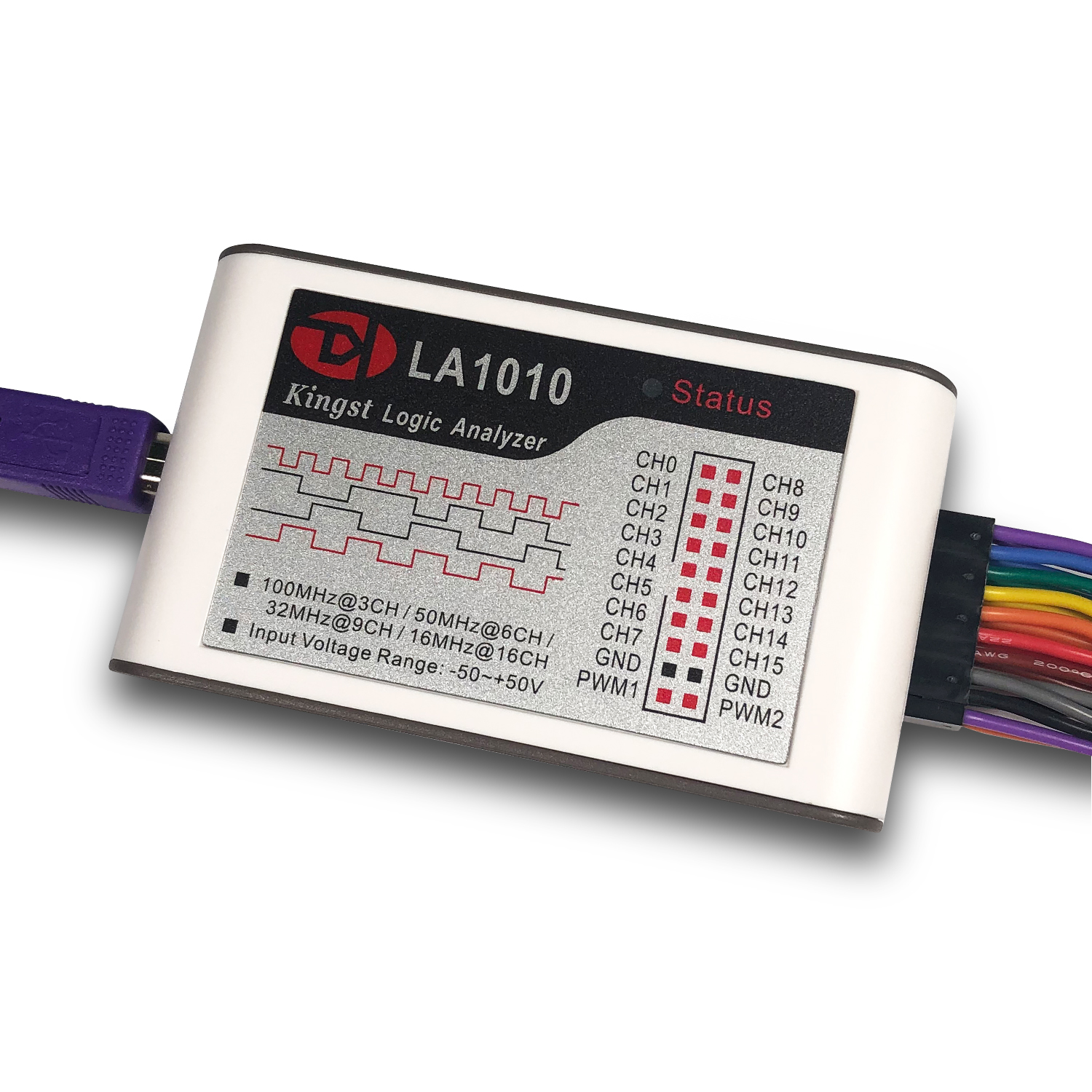

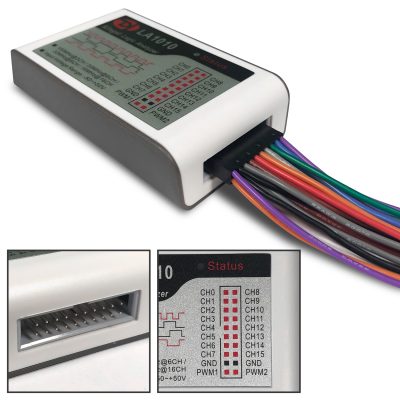

Product Photo LA1010

LA1016

LA2016

 LA5016 LA5032
Purchase Link

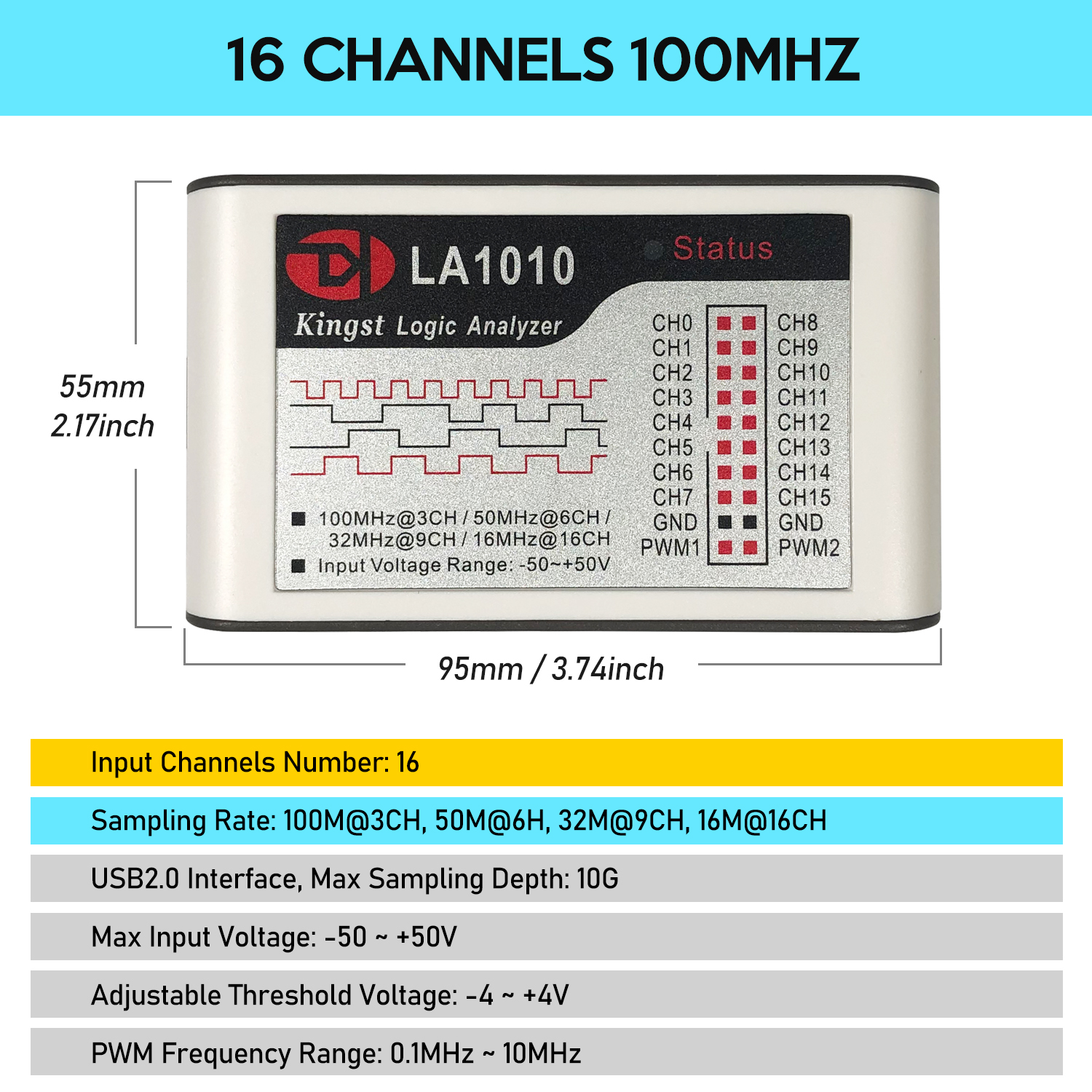

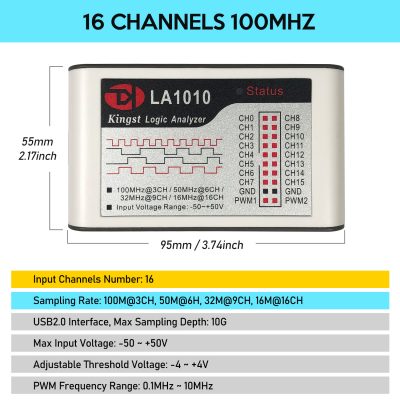

Channel Number 16CH 16CH 16CH 16CH 32CH
Max Sampling Rate 100M@3CH, 50M@6CH
32M@9CH, 16M@16CH		 100M@16CH 200M@16CH 500M@16CH 500M@32CH
Fastest Digital Signal 20MHz 20MHz 40MHz 80MHz 80MHz
Min Pulse Width 20ns 20ns 12.5ns 6.25ns 6.25ns
Hardware Memory Size — 1G bits 1G bits 2G bits 4G bits
Hardware Sampling Depth
(can be ensured)		 — 50M Sas 50M Sas 100M Sas 100M Sas
Max Compression Depth
(can’t be ensured)		 10G Sas 10G Sas 10G Sas 10G Sas 10G Sas
Threshold Voltages -4V ~ +4V -4V ~ +4V -4V ~ +4V -4V ~ +4V -4V ~ +4V

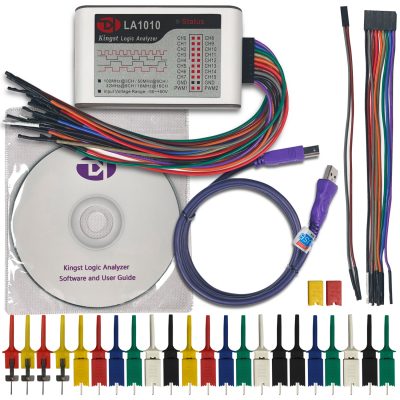

[Packing List:]

  • – 1  x  Logic Analyzer
  • – 3  x 9P Wire
  • – 2  x 2P Wire
  • – 20 x Test Hook Clip
  • – 1  x USB2.0 Cable
  • – 1  x CD-ROM</br
